Water Area Monitoring Multi-Sensor System/Surveillance Radar LW-R25-SC Security Warning and Protection with LW-R25-SC

Model NO. : LW-R25-SC

Installation Mode : Ground Steel Bracket or Tripod

Certification : ISO

Application : Industry, Special Equipment

Operating Frequency : 9410±30MHz

Peak Power : 25kw

Power : 300W

Transport Package : Aviation Box Packaging

Specification : 9410± 30MHz

Trademark : OME acceptable

Origin : China

HS Code : 8526109090

Supply Ability : 100pieces/Year

Customization : Available

Type : Sensor

Usage : Security Warning and Protection

MOQ : 10

Place of Origin : China

Brand Name : OEM

Contact Now

Water Area Monitoring Multi-sensor System

The multi-dimensional joint perception system for water monitoring is a comprehensive water monitoring system that uses monitoring radar, automatic identification of ships (AIS), optical video, and unmanned aerial vehicles as the main perception methods. It has the functions of detecting, identifying, and tracking small targets in complex water environments, as well as radar guided optical equipment tracking, photography and evidence collection, and alarm. Using multi-dimensional data fusion, image recognition, and AI intelligent algorithms to identify illegal fishing, illegal fishing, illegal sand mining, maritime smuggling, and illegal immigration, the system realizes automatic machine search and discovery, automatic alarm, and automatic evidence collection. This system can be applied in fields such as smart fishery administration, smart fishing ports, smart sand control, smart coastal defense, offshore oil and gas fields, offshore wind power plants, bridge collision prevention, etc.

Water Area Monitoring Multi-Sensor System/Surveillance Radar LW-R25-SC Security Warning and Protection with LW-R25-SC

Water Area Monitoring Multi-Sensor System/Surveillance Radar LW-R25-SC Security Warning and Protection with LW-R25-SC

Centers Mobile Platform

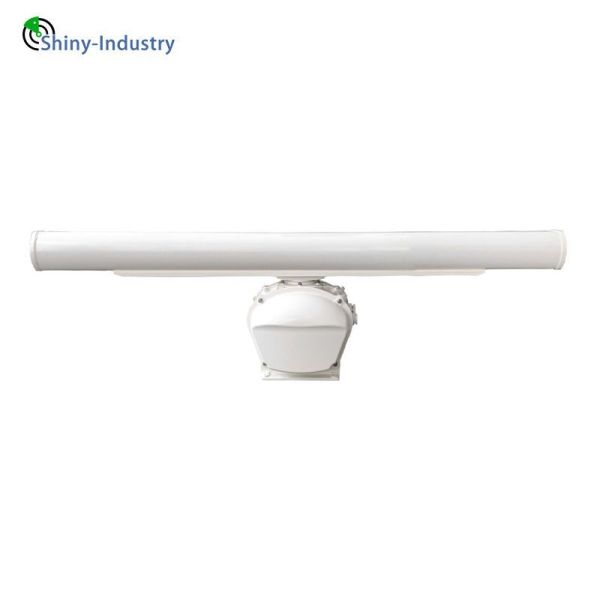

The LW-R25-SC water surveillance radar adopts advanced signal and data processing technology, with excellent situational awareness capability and extremely high reliability. It has excellent detection and tracking capabilities for various types of water surface moving or stationary targets, especially low RCS targets, under complex weather conditions.

project	index
Operating Frequency	9410+30MHZ
peak power	25Kw
power	10.0km (RCS>1m, height 2m, Pd=0.8, Pf=10-6) 50.0km (RCS>1000m, height 10m, Pd=0.8, Pf=10-6)
resolution ratio	Distance resolution: ≤ 10m Speed resolution: ≤ 1m/s
positioning accuracy	Distance accuracy (root mean square): ≤ 8m Direction accuracy (root mean square): ≤ 0.3
power	300w
reliability	MTBF value (Mean Time Between Failures)>9000hMTTR value (Mean Time to Repair) 0.5h
